- Brand Name:Â MHSZZAO
- Origin:Â Mainland China
- Item Height:Â 3.6cm
- Item Length:Â 14.3cm
- Material Type:Â other
- Item Type:Â Grips
- Item Weight:Â 236g
- Item Width:Â 3.6cm
- Model Name:Â CS-095D1
- Item Diameter:Â 3.6cm
- handle diameter:Â 22mm
- Input voltage:Â 12V
- product power:Â 12W-24W adjustable
- Handle temperature:Â 50 C -70 C adjustable
- Applicable models:Â Handle 12V motorcycle with diameter of 22MM
Â
Â
Â
-31%
Price range: £18.43 through £19.02
This product has multiple variants. The options may be chosen on the product page
-31%
Price range: £18.43 through £19.02
This product has multiple variants. The options may be chosen on the product page
-31%
Price range: £18.43 through £19.02
This product has multiple variants. The options may be chosen on the product page
-31%
Price range: £18.43 through £19.02
This product has multiple variants. The options may be chosen on the product page
-31%
Price range: £18.43 through £19.02
This product has multiple variants. The options may be chosen on the product page

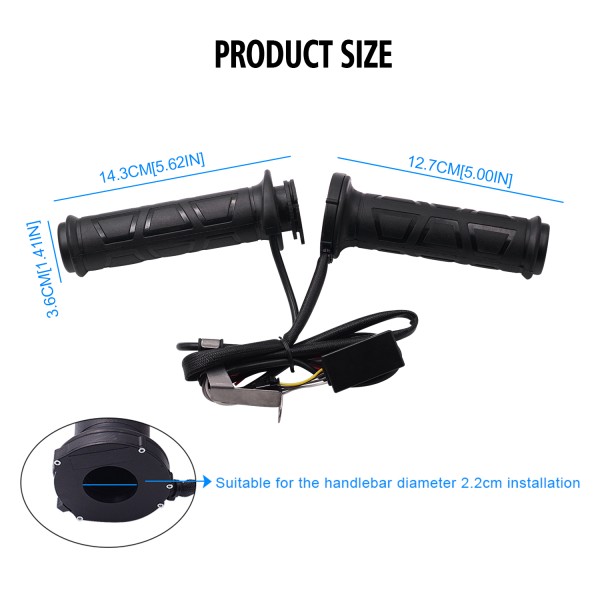

[hand length]: left hand: 143*36MM; right hand: 127*36mm
[handle diameter]: 22mm
[Input voltage]: 12V
-31%
Price range: £18.43 through £19.02
This product has multiple variants. The options may be chosen on the product page
[Handle temperature]: 50 ° C -70 ° C adjustable
[handle type]: can be sealed, can pass the electric hot handle
[Switch Type]: Multi-speed adjustable switch
[Applicable models]: Handle 12V motorcycle with diameter of 22MM
Â
ăPrecautionsă:
[1] When installing the left handle, do not twist the handle too much. Excessive twisting will cause the heating wire to shift.
[2] With the balanced iron model, please adjust the balance iron installation position. Do not squeeze the handle when tightening the screw. The balance iron is slightly separated from the handlebar. If the installation position of the balance iron cannot be adjusted, please separate the balance between the balance iron and the handle. Excessively squeezing the handle will cause difficulty in the toggle of the handlebar, and the surface of the heating wire will be abnormally damaged.
Â
ăInstallation Notesă:
[1] Remove the original driver’s handle
[2] The inner hole of the left hand is moistened with soapy water, and the twisting amplitude during installation cannot be too large.
[3] When the balance iron is installed on the left handle, the balance iron position is adjusted to be slightly separated from the handle, and the handle cannot be squeezed when the screw is tightened.
[4] Use the left hand handle to slide on the steel pipe, remove the balance iron, and fix a few drops of 502 glue from the tail of the handle.
[5] Power line, the red line is connected to the positive pole, the black line is connected to the negative pole, and the reverse connection temperature cannot be adjusted.
[6] When the left hand is installed, the power cord should be left with enough remaining turns.
Â
ăProduct advantagesă:
[1] 12V voltage, 22MM handle inner diameter, suitable for most motorcycles
[2] The product sets high and low level switch, which can adjust the handle temperature at will (50°C-70°C adjustable)
[3] Double throttle line buckle, wider installation range

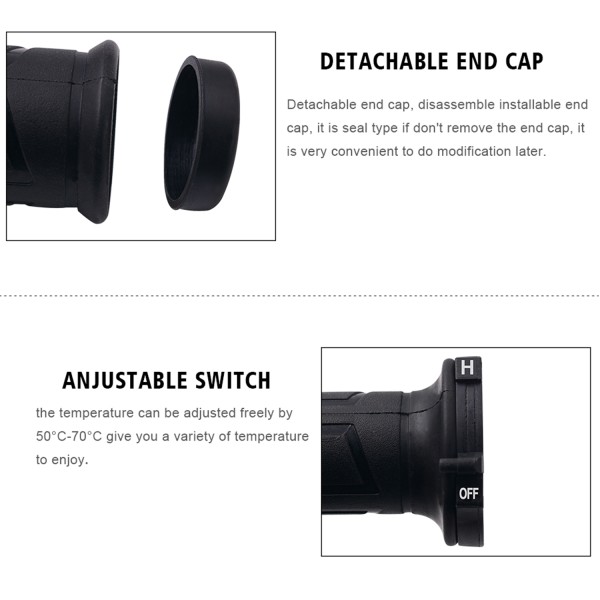

[4] It can be sealed and designed for the mouth. It does not affect the installation of the handlebars outside the handlebars. Only the decorative accessories such as lamps are more beautiful and convenient.
