Premium 3 Axis Stable Gimbal for Phone Recording

1, Stabilizer has 3 different modes: full-follow mode, half-follow mode, full lock mode

2, Handle manual zoom control

3, The use of 4000mAH power supply, the maximum can run for 12 hours;

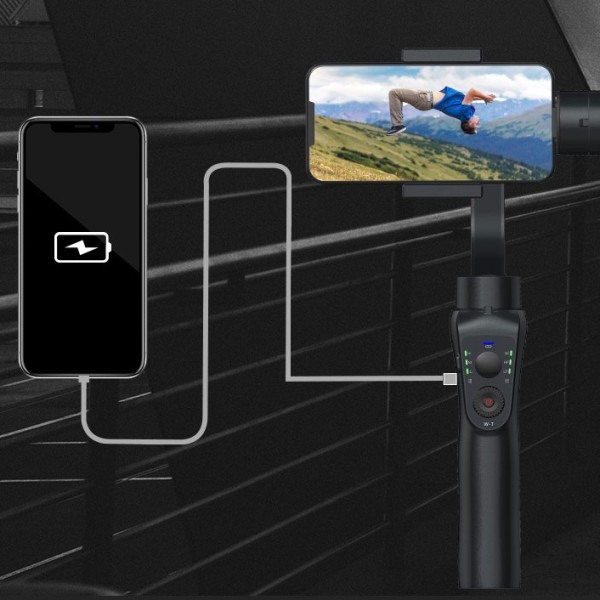

Built-in USB interface to charge your phone or motion camera directly

4, When the power supply is low, can also charge the stabilizer

5, 70 degrees mobile clamps to facilitate switching vertical shooting mode

6, Compatible with GOPro Hero 5 /Hero 4 and 3, YI camera and similar size action camera

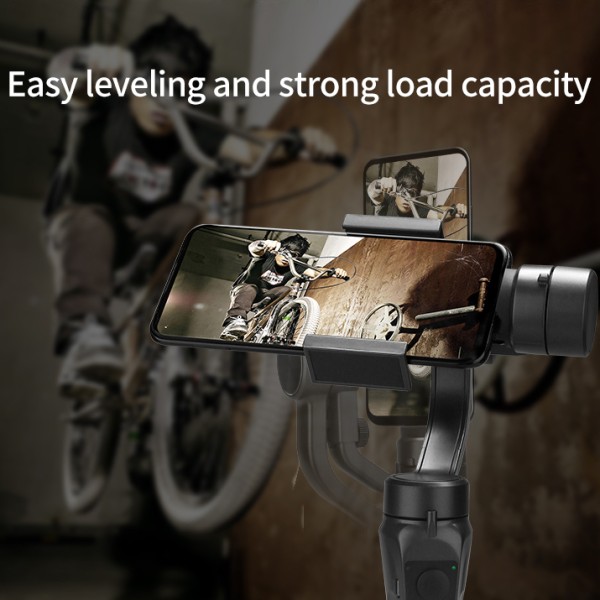

7, One step balance: the design of a unique adjustment arm, do not require additional counterweight.

8, Direct lying back to the rear camera (Selfe Posits) function: double-click mode key to bring the lens to its original position

9, Quick manual shift: move by hand from the initial position to the subsequent position

10, Customizable joystick: in any operating mode can let the lever work the way you want

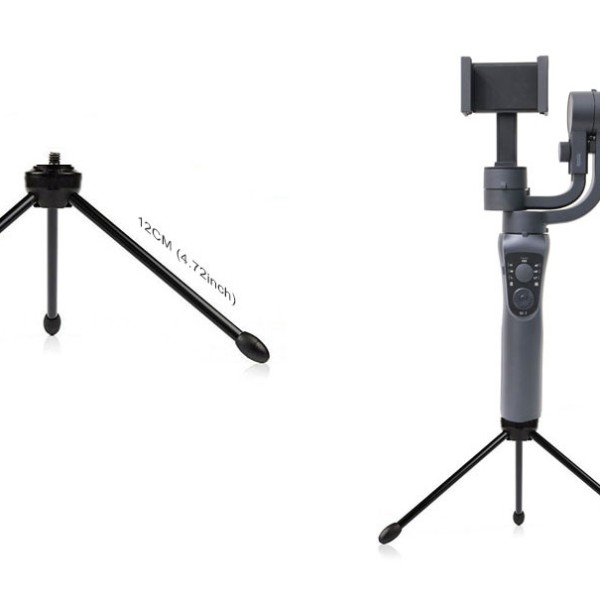

11, 1/4 threaded screws can be installed almost anywhere

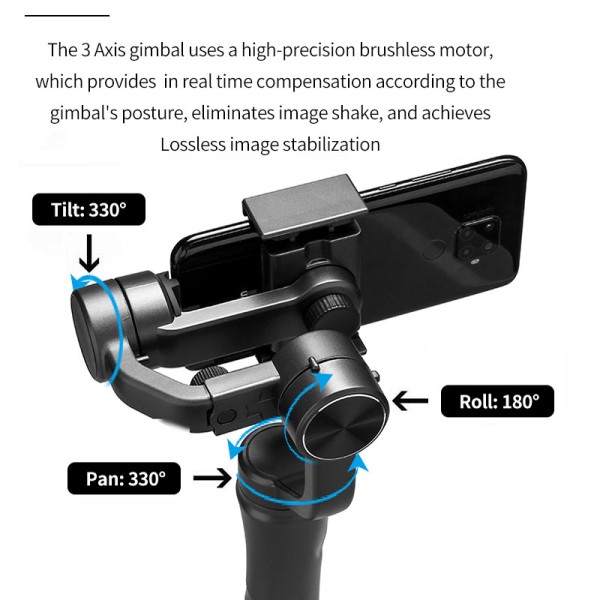

Pitch shaft mechanical action range :325°

Roller mechanical action range :160°

Direction axis mechanical action range :330°

The pitch axis controllable angle :+155°/-155°

Controllable angle of the roller :+30°/-30°

The controllable angle of the heading axis ：+155°/-155°

Weight ：75~230g

Working hours ：10-12H

Arm part ：PPA+Nylon（PPA+BF）

Handle part ：ABS+PC

Surface treatment ：Paint oil

Head size ：10.8cm(L)*7cm(W)*28.9cm(H)

Weight of the product ：Net:460g   With packing weight:680g

Operating current ：150~3000mA(Standard 1500mA)

Operating voltage ：3.4~4.2V(Standard 3.7V)

Operating temperature ：0C°-40C°

Charging time ：5H

In/out voltage :  5V

In/out current :1A

Scope of application :6.5Cell phones below inches、Gopro 3/4/5/6

10 outer box size Long :32.7cm  Wide：34cm  High：35cm

Bluetooth :Yes

APP :Yes

Face tracking :Yes

Focusing function :Yes

1, New ZWN version can intuitively see how much LED lamp power, old version can not do that. when no electricity it will flash red light, prompt no electricity.

2, New ZWN version  can not only see the state of the mode by APP but also can be seen through the appearance of the pattern state, and old version can only see the mode state through the APP and user’s feelings

3, New ZWN version  focus mode changed to sheave, and in front, and old version is the side, moving up and down.



3 Axis smartphone Gimbal Stabilizer

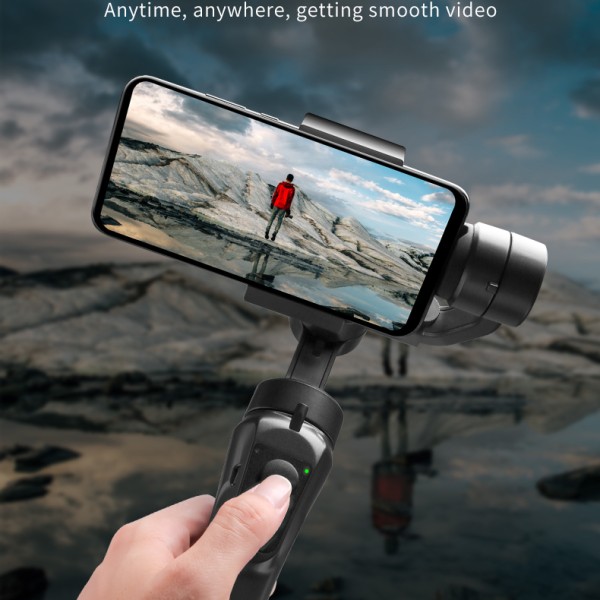

Anti-shake technology

3-Axis electronic anti-shake stabilization system help us capture the video and photo more clearer and brighter.

Horizontal and vertical  shooting Easy to convert

Two-way mobile phone clip design: A. keep the phone facing towards you and rotate the gimbal handle 70 degree

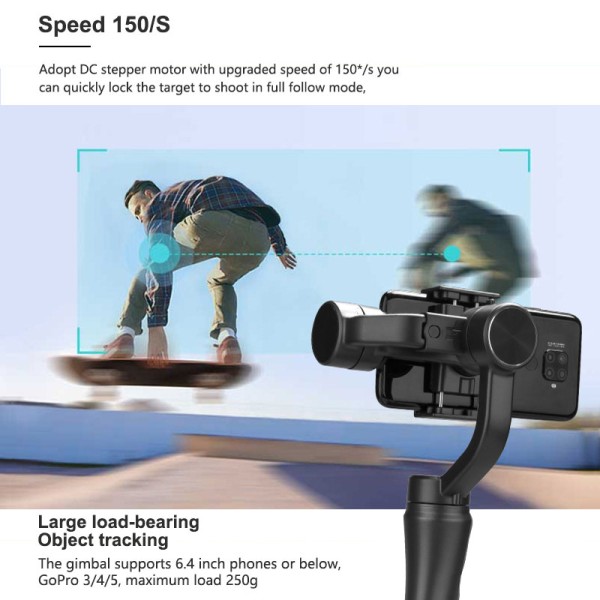

Smart Tracking and Object Tracking

Support the face tracking function via App available both Android and iOS.

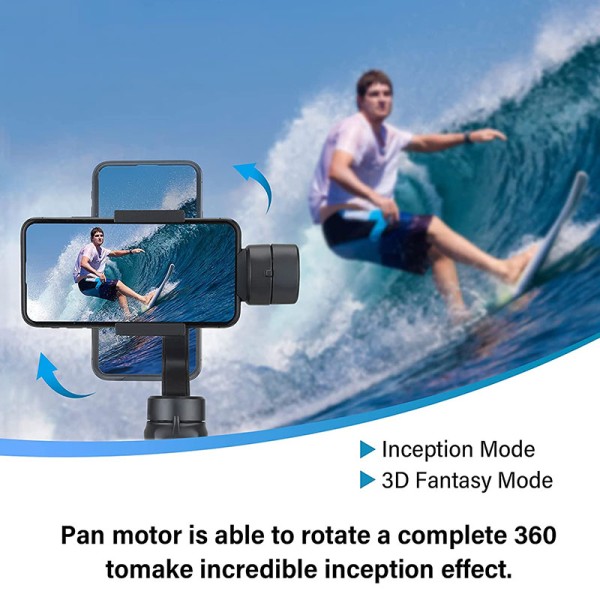

Panoramic Shooting

One key enter to panoramic  shooting auto rotate 330 degree photo, or choose rotate 180 degree for panoramic photo by your different needs.

Dial wheel zoom button

With a fingertip’s reach joystick and dial wheel, Which can access camera setting and operation modes.

Beauty

Has beauty function with multi-player scenes.

Build-In 4000mAh battery

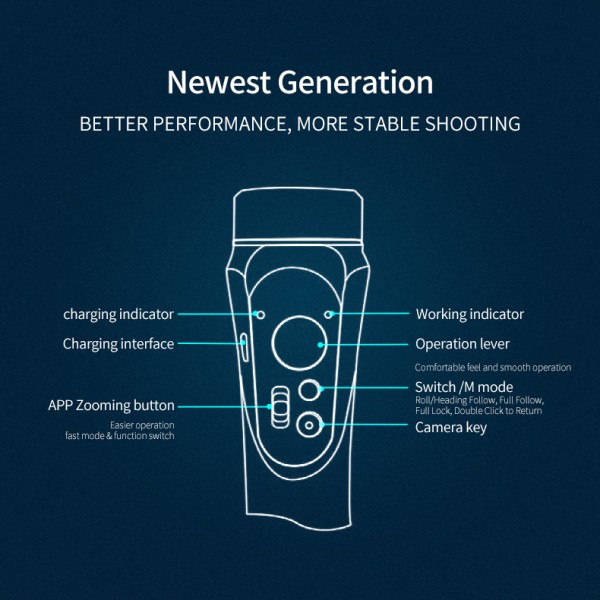

Get to know Gimbal stabilizer

3 Operation Modes for Choosing

Compantible with AII Smartphone

Download and Connect APP

S5B Specification

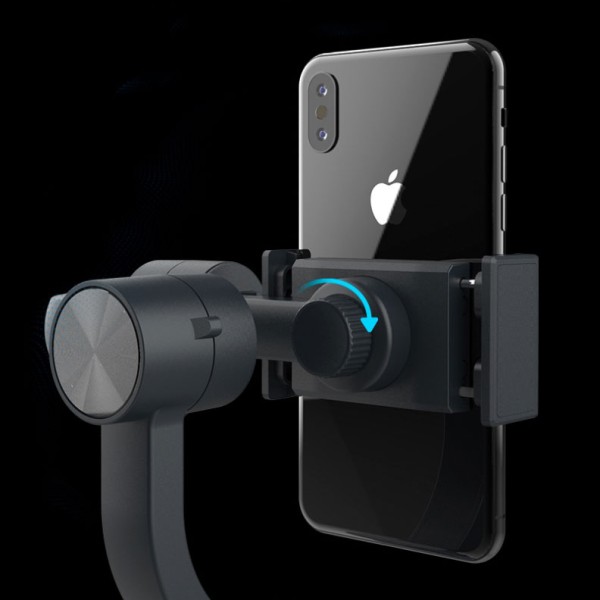

Rotate the adjustment knob can switch horizontal mode to portrait mode.

Balance Knob

Adjustment Knob

FAQ:

Q: Why lost balance after a while or lost Bluetooth connect after a while?

A: Install Way wrong, Because turn on gimbal without balance adjustment.

Q: Why gimbal&phone always can’t balance?How solve?

A: Turn on gimbal after balance adjustment

Q: Why the shoot button not work?

A: Didn’t connect Bluetooth.Connect it, then it work.

Q: Why I can’t find out Bluetooth connect singla in APP?

A: The phone connected other Bluetooth device already.Cancel it, then try again.

Q: Are there other app control the gimbal such as facebook, youtube?

A: No, they haven’t Bluetooth permission for connect with Gimbal.But you can used gimbal without Bluetooth connect.

Q: Does the S5 work by temperature lower than -10 `C?

A: Yes, but the S5 gimbal shall be turned on indoor.

Q: What smartphone it support?

A: More than 99.5% smartphone of android and IOS system support with S5 Gimbal.

iphone series which IOS.10.0 or newer.Such as iphone 5s ,iphone6/7/8/s/plus,phone X/XS/Max

Android 5.0 or newer, RAM larger than 2GB.

Q: What Max size it support?

A: full screen smartphone: 6.5 inch;others: 6.3inch

Q: What Max weight it support?

A: Support up to 230g
